Bartending Robot SW BTAN 1
Bartending Robot / Whiskey Bar Vending Kiosk

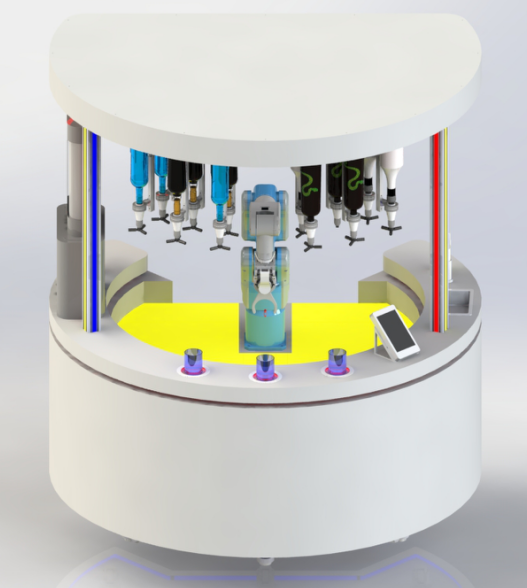

SW BTAN 1 is a bartending robot — a whiskey bar vending kiosk built from modular subsystems: robot arm, pneumatic or electric shaker, drinks dispenser, ice maker, cup dispenser, order & payment, plus a customisable enclosed kiosk.
Product Video
Compositions

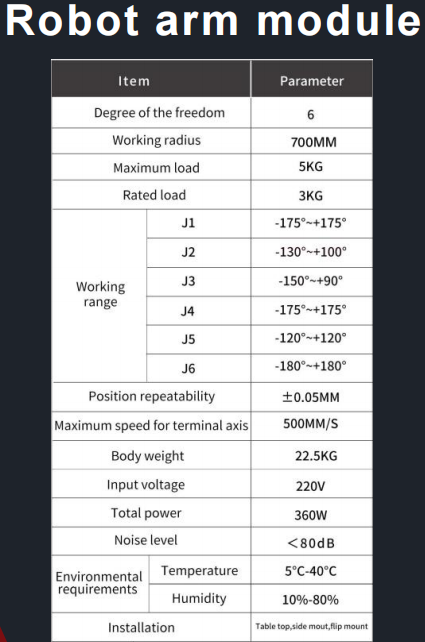

| Robot Arm Module | Precision robotic arm for picking, pouring and serving drinks. |
| Shaker Module | Pneumatic or electric shaker module; capacity 250ml; stainless steel. |
| Drinks Dispenser Module | Customisable; aluminium + food grade ABS; spring-loaded telescopic puller; pours 25ml, 30ml or 45ml per recipe. |
| Ice Making Module | Ice capacity 3.5L; output 3kg/h (72kg/24h). |
| Cups Dispenser Module | Cup diameter 90mm; capacity 160pcs at least; sheet metal. |
| Order and Payment Module | Order screen system; NAYAX bank card payment equipment. |
| Custom Kiosk Module | Customisable enclosed kiosk; sheet metal; demonstrations for special custom. |

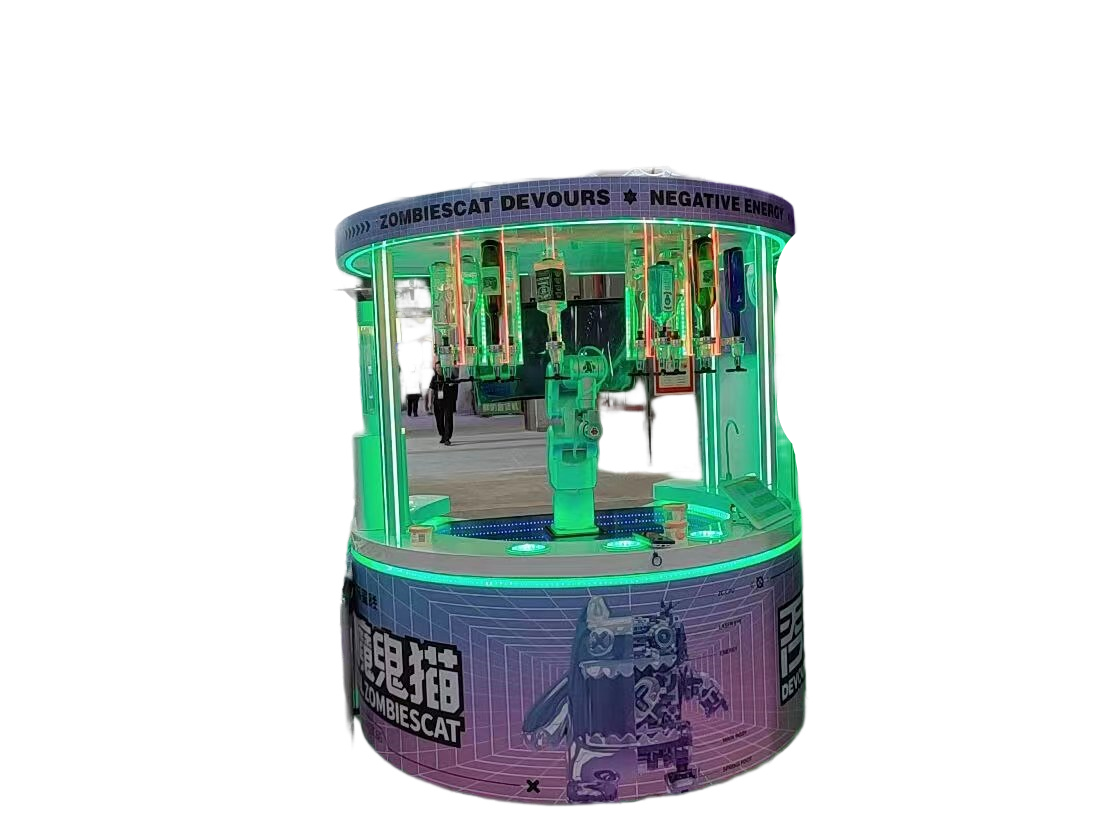

Vending Kiosk
Certifications
CEULETLNSFFCC
Technical Specifications
| Drink Types | 200+ recipes |
|---|---|
| Shaker | 750ml capacity |
| Power | 220V/50Hz or 110V/60Hz |
| Dimensions | 650mm x 600mm x 1700mm |
| Weight | 110kg |
| Warranty | 24 months |
Customization Options
- Drink menu
- branding
- bottle configuration
- payment integration
